| 产品特性：打码机 | 加工定制：是 | 品牌：迈创 |
| 型号：MT-DF | 类型：打码机 | 打印方向：单向打印 |
| 适用工件：皆可 | 包装类型：箱、 袋、 杯、 管、 罐、 盒、 瓶、 桶、 软管、 易拉罐、 碗、 泡沫、 碟、 带、 其他 | 售后服务：整机质保一年，设备终身维护 |
| 订货号：MT-DF | 货号：MT-DF | 打印速度：小于或等于8000mm/s |
| 打印范围：600*600/80*800mm | 打印深度：小于或等于0.5mm | 打印高度：100-500mm |
| 气源压力：10MPa | 重量：150kg | 自动化程度：全自动 |
| 适用行业：餐饮、 食品、 医药、 日化、 烟酒、 化工、 服装、 家纺、 玩具、 五金、机械、 礼品、工艺品、 其他 | 位数：10位 | 是否跨境货源：否 |

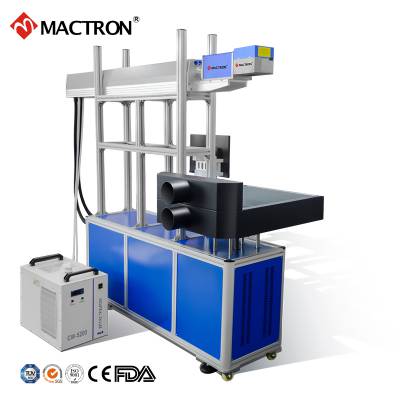

l 机器简介Model Introduction
该机型是基于传统激光打标机而推出的***CO2激光标记系统。系统采用工业标准化设计，配置***玻璃封装CO2激光器、进口F-Theta场镜，以及高速扫描振镜和扩束聚焦系统，可在精密升降式工作台上进行智能控制和操作。可实现24小时高速稳定运转，性价比极高。
MT-DF Series Co2 Glass Tube Laser Marking Machine is a new generation of laser marking machine. The design is based on tradition laser marking machine, and the performance is more excellent. The laser system adopts the industrial standardization design, and uses a new generation glass sealed Co2 laser tube. In addition, it is also equipped with high speed galvo scanner and extending focusing system. The machine also has the high stability and anti-intervention industrial computer system, and high precise lifting platform. It can work on a continuous 24 working hours in high stability, high precision and high speed. This series laser marker greatly lowers the processing cost, and it is very cost-effective.
l 技术参数 Technical Parameter
型号 / Model | MT-DF30S | MT-DF60/80/100 | |
激光功率 / Laser Power | 30W | 60W/80W/100W | |
激光类型 / Laser Type | 二氧化碳激光 / Co2 Laser | ||
激光波长 / Wavelength | 10.6um | ||
工作幅面 / Processing Area | 110X110MM,175X175MM, 200X200MM, 300X300MM, 600X600MM,800X800MM (可选 / Optional) | ||
打标速度 / Max. Marking Speed | <8000MM/S | ||
打标深度 / Max. Marking Depth | ≤0.3MM | ≤0.5MM | |
重复精度 / Repetition Precision | ±0.01MM | ±0.03MM | |
响应时间 / Response Time | 0.5ms | 0.8ms | |
冷却方式 / Cooling Method | 水冷 / Water Cooling | ||
支持格式 / Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG | ||
工作电源 / Power Supply | AC 110/220V±10%, 50/60Hz | ||
整机功率 / Gross Power | <1.0kW | <1.5kW | |
工作环境/ Working Conditions | 工作温度 / Working Temperature: 10℃ - 30℃, 工作湿度 / Humidity: 5% - 85% (无凝水 / No Condensate) | ||
l 适用材料 Applicable Material
Co2激光打标机可标刻多种非金属材料和部分金属制品，如竹制品、木材、纸张、ABS、 PVC、环氧树脂、亚克力、皮革、玻璃、建筑陶瓷、橡胶等。
Co2 laser marking machine can mark a variety of non-metallic materials and some metal products, such as bamboo products, wood, paper, ABS, PVC, epoxy resin, acrylic, leather, glass, building ceramics, rubber and so on.
l 应用行业 Applicable Industry
广泛应用于医药包装、食品包装、饮料包装、塑胶、纺织、皮革、木材、工艺品、鞋材、服装、牛仔等多种行业。
MT-DF Series Co2 Glass Tube Laser Marking Machine can be widely used in leather, package, cloth, shoe material, garments, jeans, other industries.
l 样品展示 Sample Display
